DIMENSIONS
CREATIVE USE OF SPACE.
Your perfect MINI is just a few clicks away, but knowing the exact dimensions of your car when you’re living and driving in the city can be very helpful.

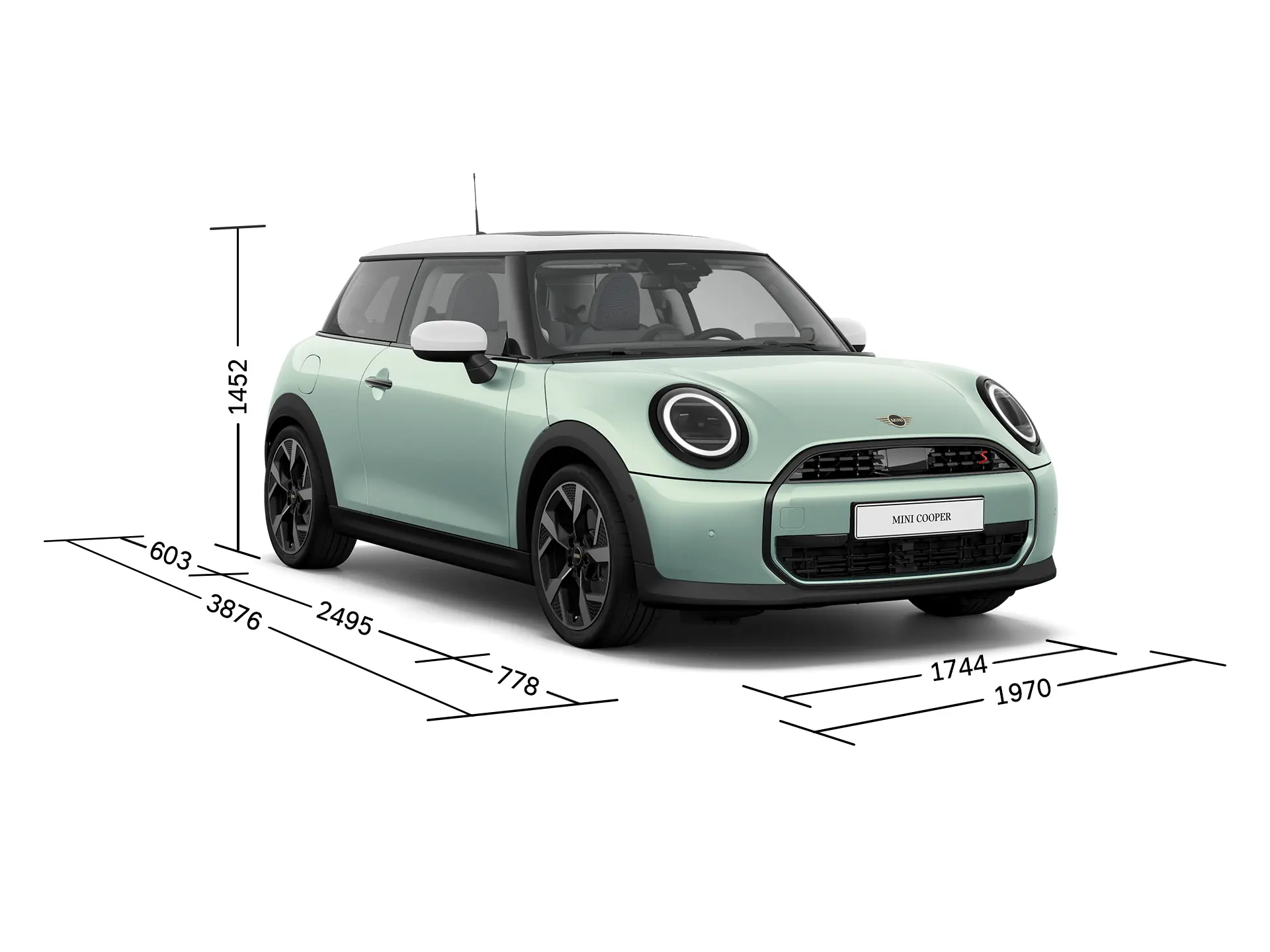

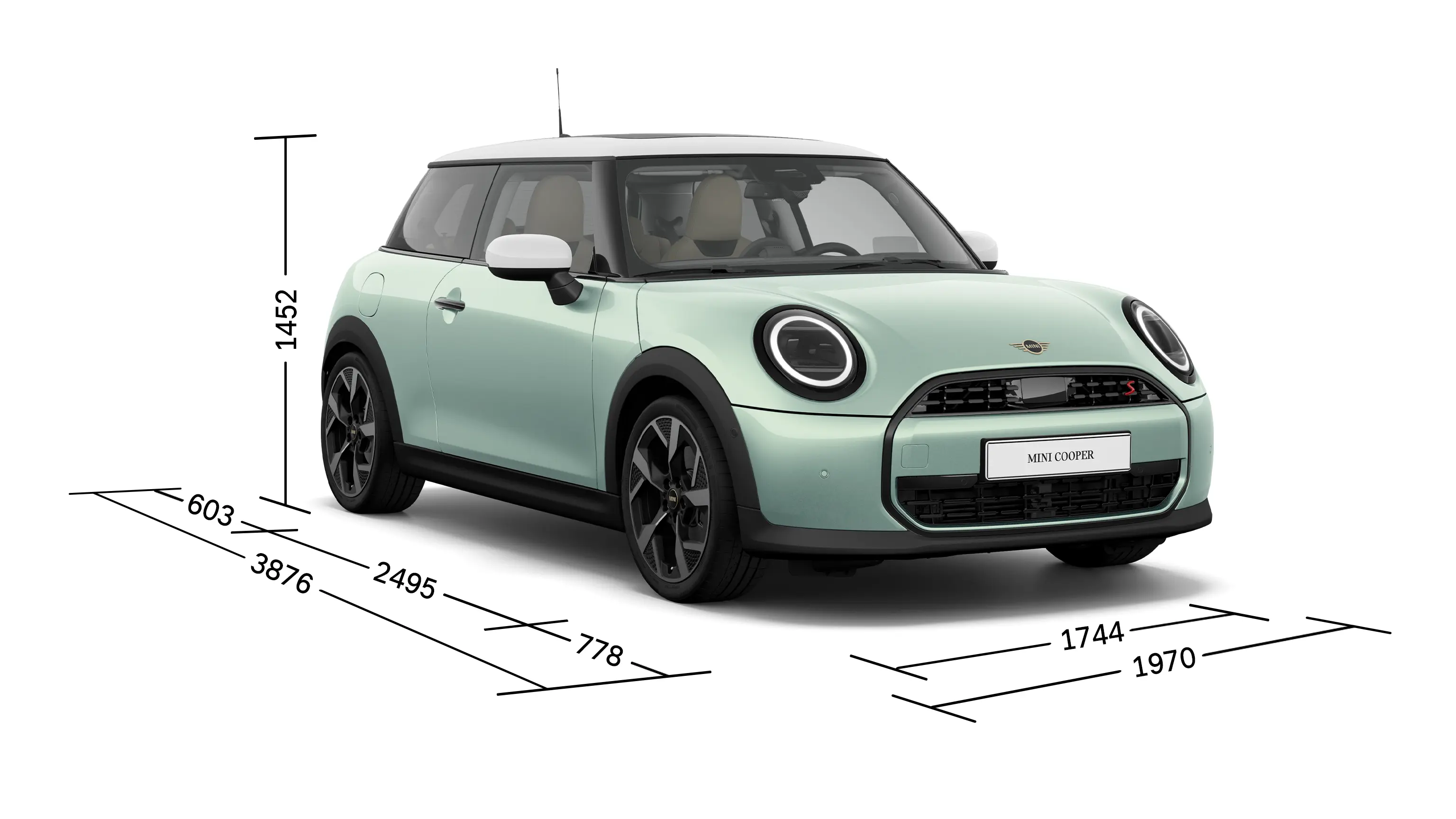

EXTERIOR.

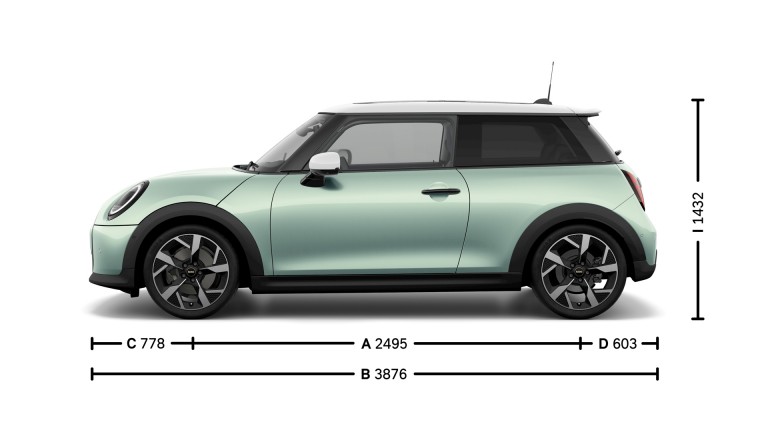

| (A) Wheelbase |
2,495 mm |
|
(B) Vehicle length |
3,876 mm |
|
(C) Overhang length, front |
778 mm |
|
(D) Overhang length, rear |
603 mm |
|

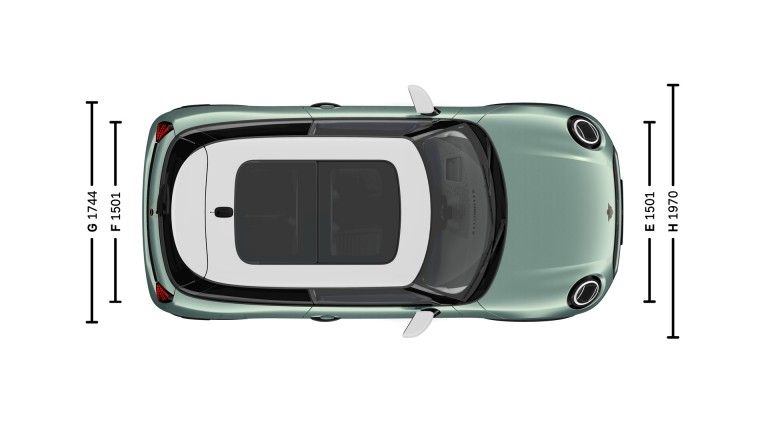

(E) Track width, front |
1,501 mm |
|
(F) Track width, rear |
1,501 mm |
|
(G) Vehicle width |
1,744 mm |
|
(H) Vehicle width included external mirrors |
1,970 mm |
|
(I) Vehicle height (with standard installed parts) |
1,432 mm |
|

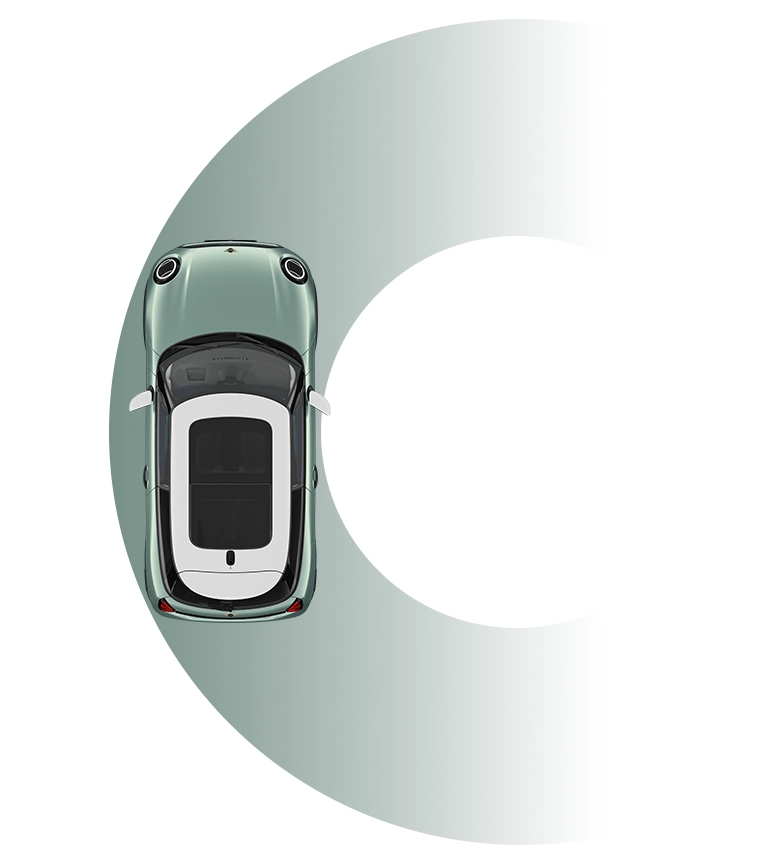

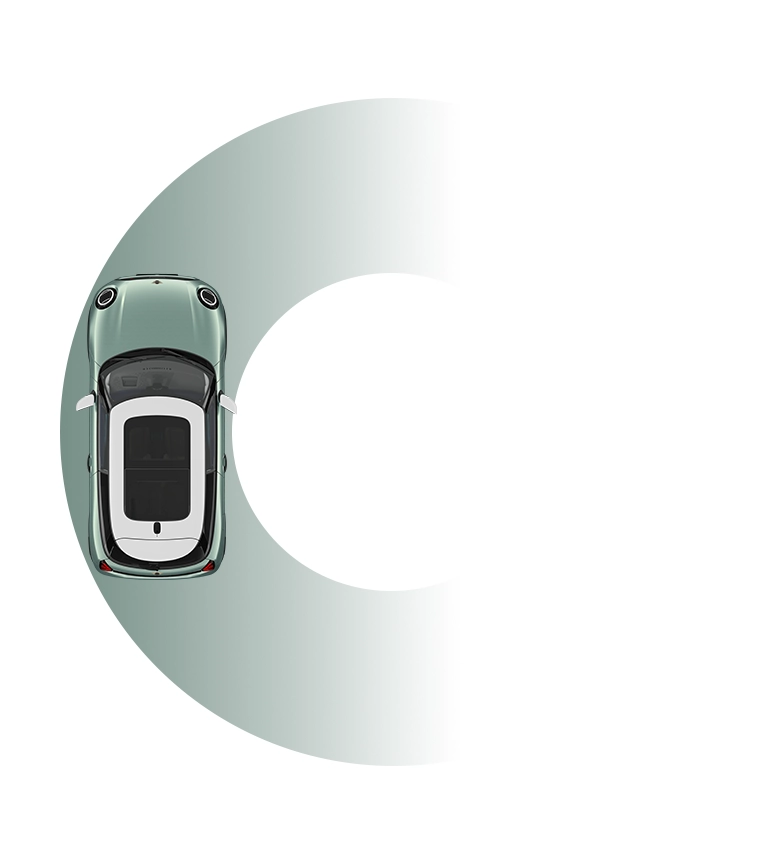

Turning circle diameter |
10.9 m |

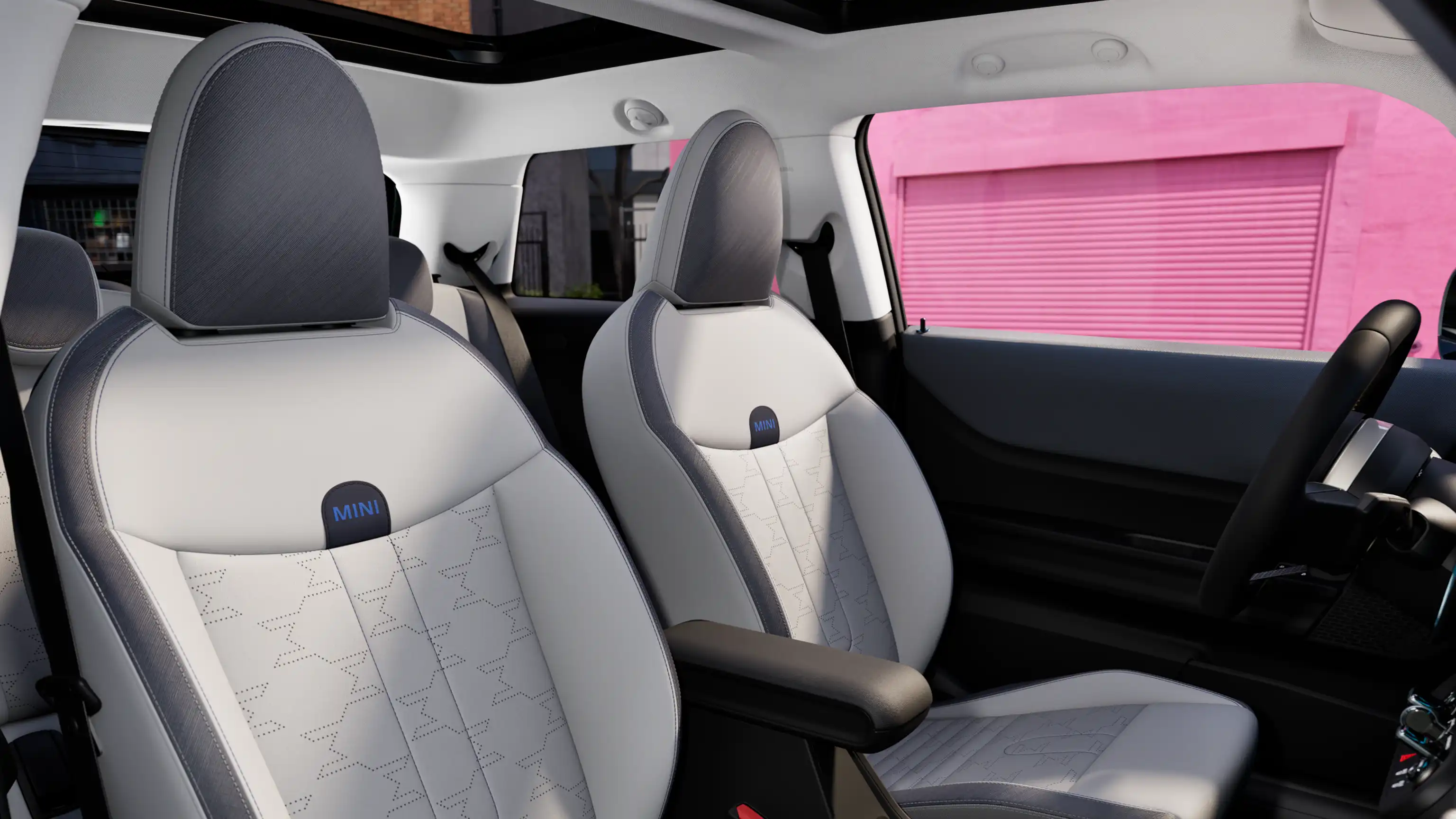

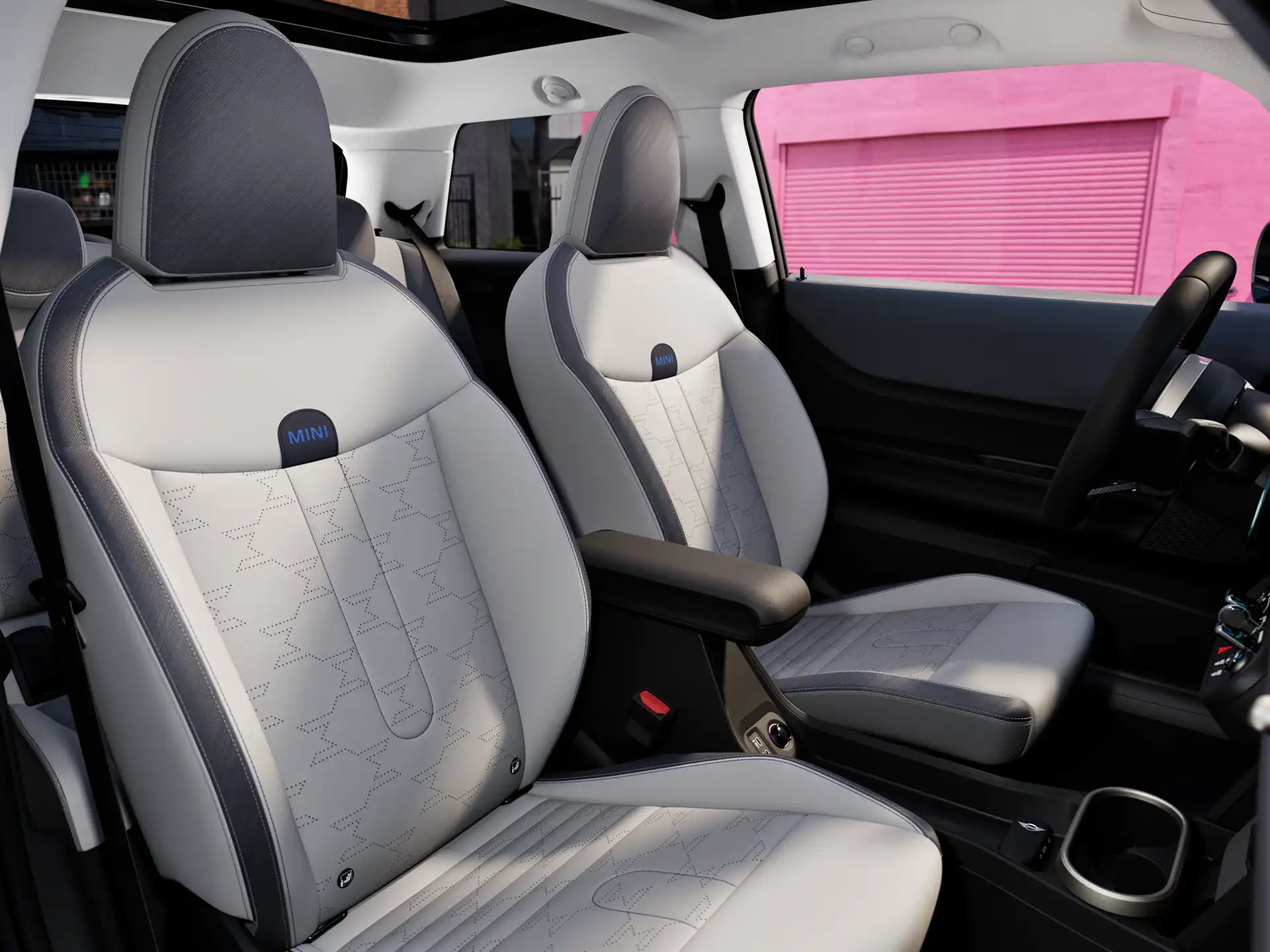

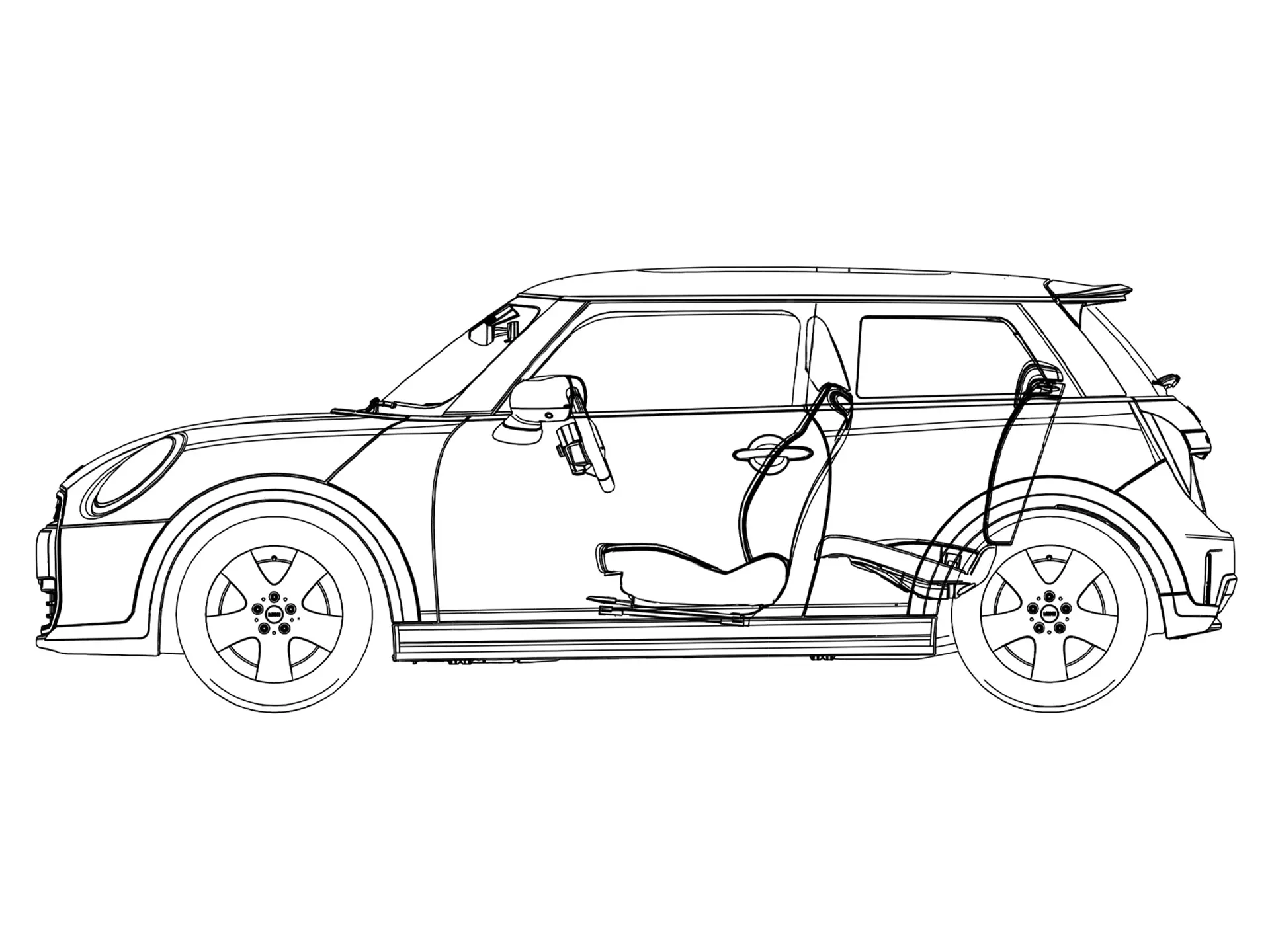

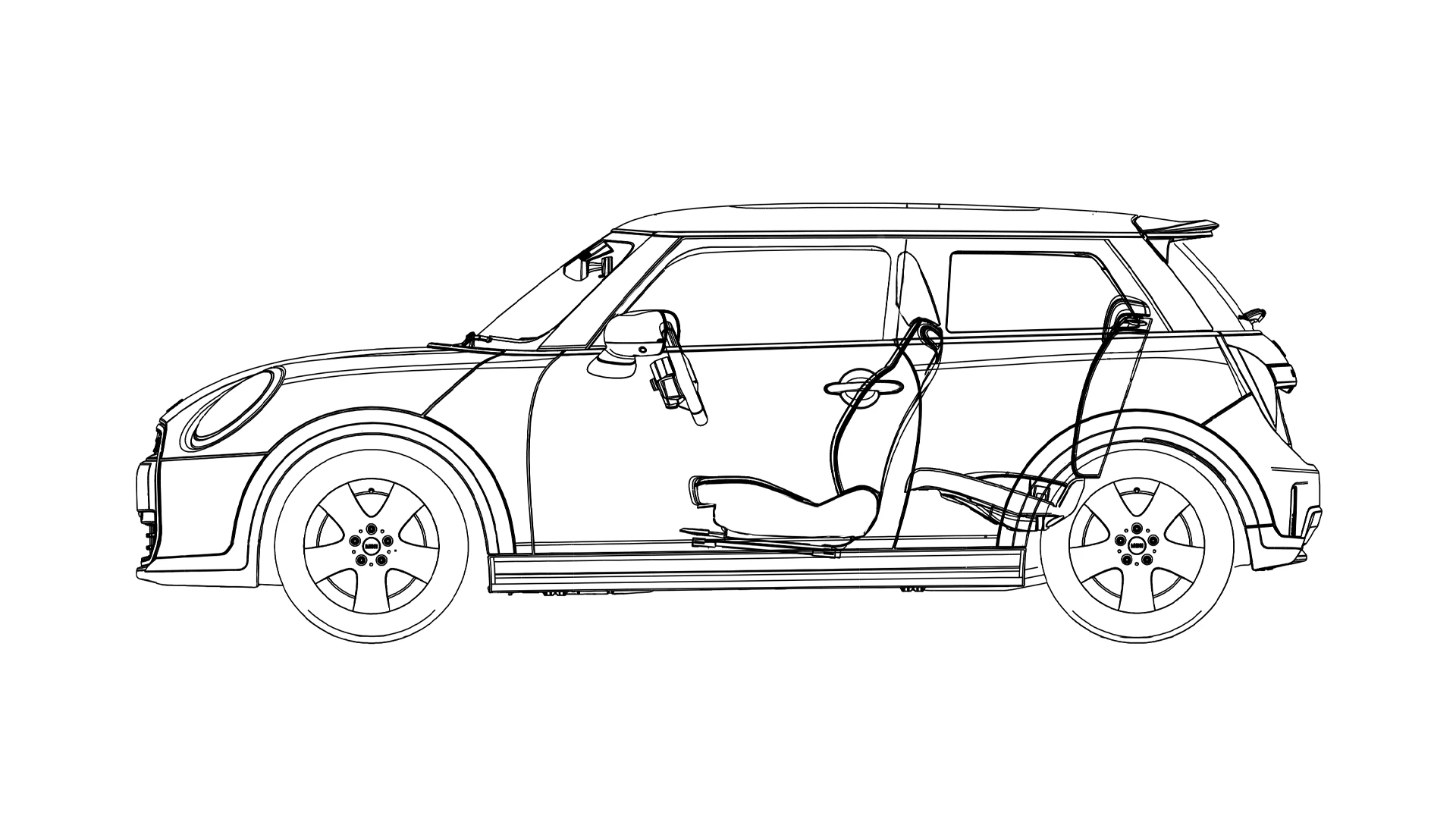

INTERIOR.
| Effective leg room, front |
1,051 mm |
|
Effective leg room, rear (design position) |
783 mm |
|
Shoulder room, front |
1,301 mm |
|
Shoulder room, rear |
1,246 mm |
|
Elbow room, front |
1,365 mm |
|
Elbow room, rear |
1,265 mm |
|
Head room panoramic glass sunroof, front |
977 mm |
|
Head room panoramic glass sunroof, rear |
941 mm |
|
Head room normal roof, front (com. value) |
1,024 mm |
|
Head room normal roof, rear (com. value) |
937 mm |
TRUNK.
|
Luggage compartment floor length (2nd seat row) |
487 mm |
|
Smallest loading opening |
699 mm |
|
Largest luggage compartment width |
993 mm |
|
Smallest luggage compartment width |
963 mm |
|
Width of tailgate - top |
847 mm |
|
Width of tailgate - bottom |
892 mm |
|
Height of loading opening |
625 mm |
|
Luggage compartment height |
606 mm |
|
Loading edge height |
636 mm |
